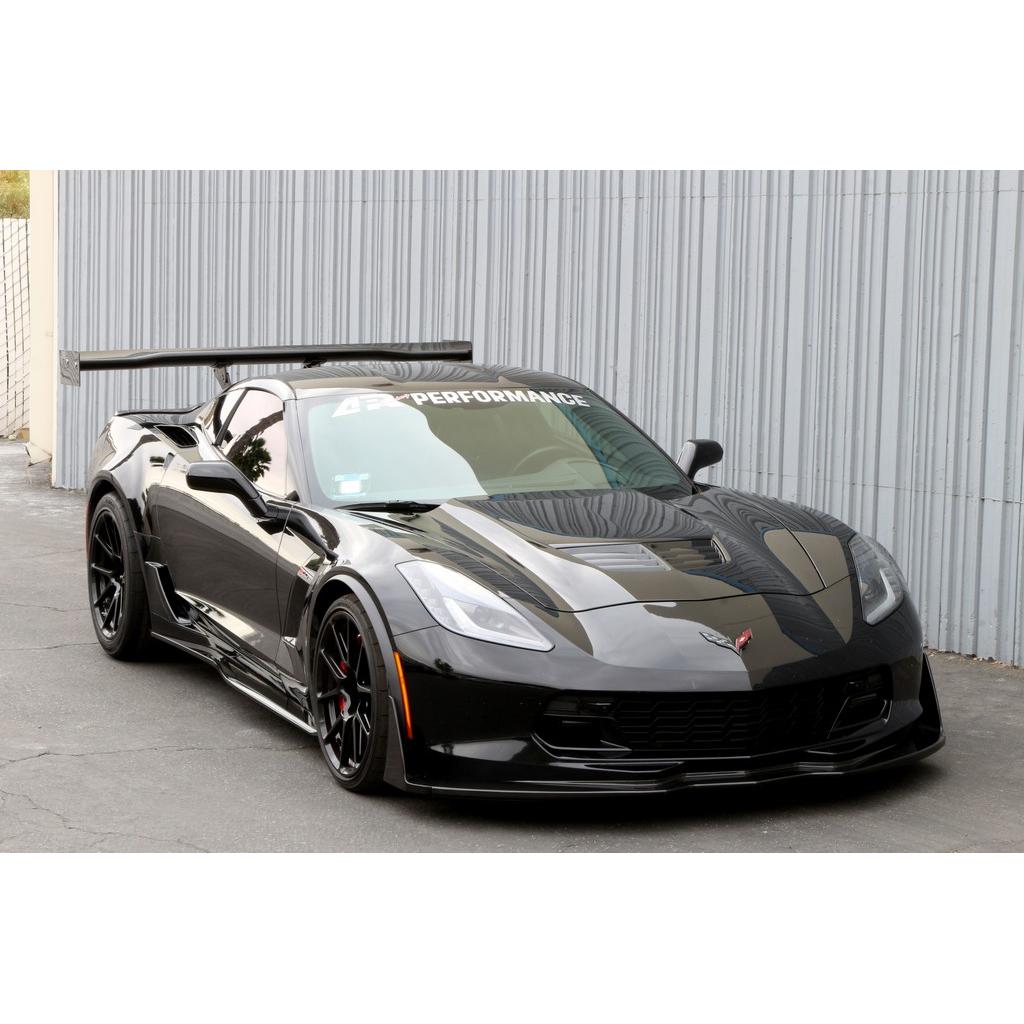

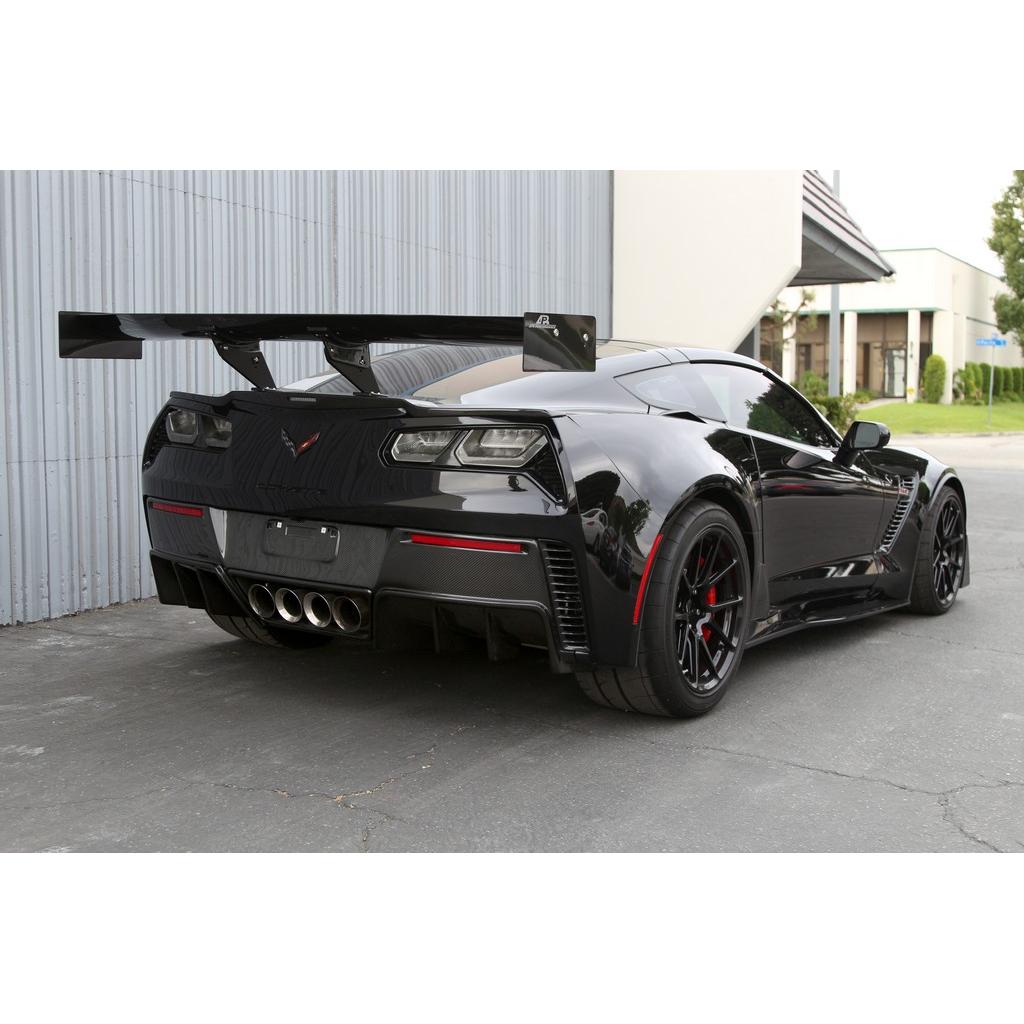

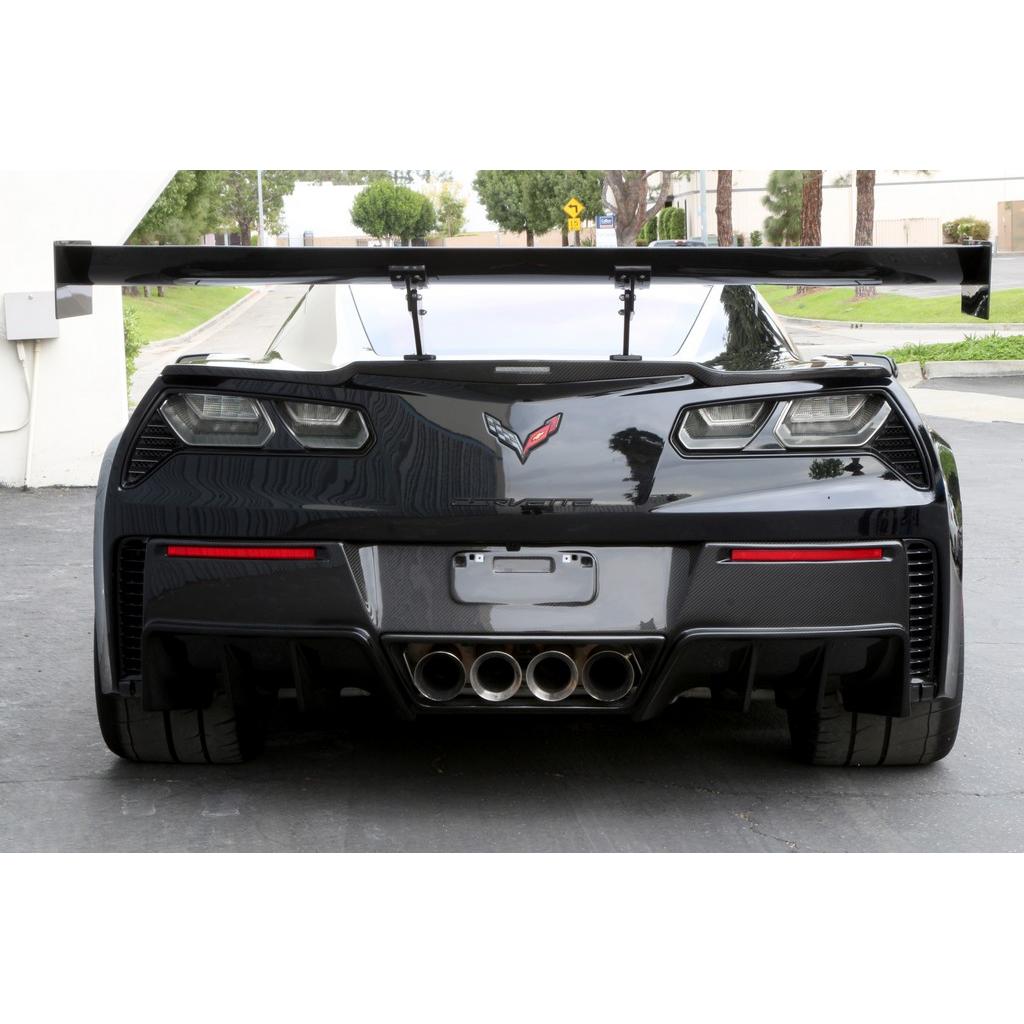

Increase rear-end stability and maximize aerodynamic performance on your Chevrolet Corvette C7 Z06 or Grand Sport with the APR Performance GTC-500 Chassis Mount Carbon Fiber Adjustable Rear Wing. Designed for serious track and high-performance applications, this chassis-mounted configuration transfers aerodynamic load directly to reinforced mounting points for improved structural stability compared to trunk-mounted wings.
Engineered using CFD-optimized airfoil technology, the GTC-500 delivers substantial rear downforce with minimal drag penalty, helping improve cornering grip, braking stability, and high-speed balance.
This kit includes reinforcement brackets, a carbon fiber spoiler delete panel, and an LED third brake light for proper chassis-mount installation.
Important Fitment Note
Fits Corvette C7 Z06 and Grand Sport Coupe models only.
Will NOT fit Stingray models.
Convertible compatibility not supported.
Key Features
Chassis-Mount Wing Configuration
Transfers aerodynamic load directly to reinforced mounting points for improved rigidity and track-ready performance.
CFD-Optimized Airfoil Design
Engineered for strong rear downforce generation while minimizing aerodynamic drag.

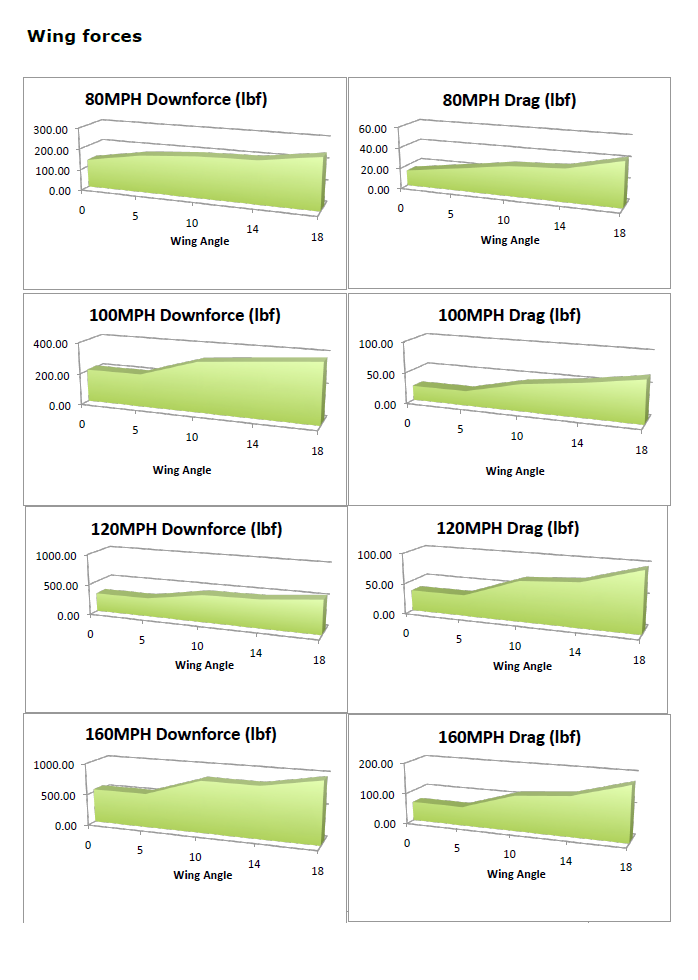

Adjustable Angle of Attack (0°–15°)
Allows precise tuning of aerodynamic load depending on track layout and performance requirements.
Autoclave-Cured Pre-Preg Carbon Fiber Construction
Provides exceptional strength-to-weight ratio and rigidity under high aerodynamic loads.

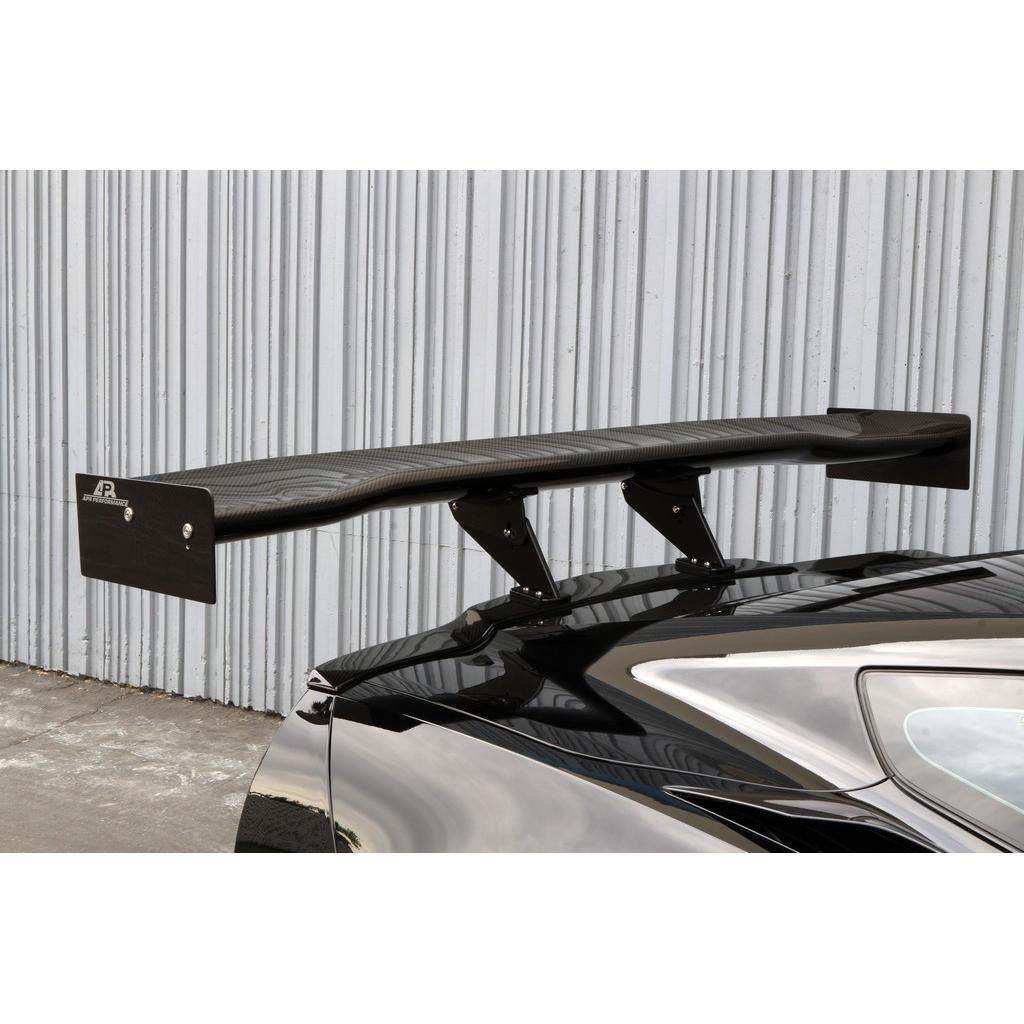

Aircraft-Grade Billet Aluminum Uprights
Constructed from 10mm 6061 billet aluminum for strength and adjustability.

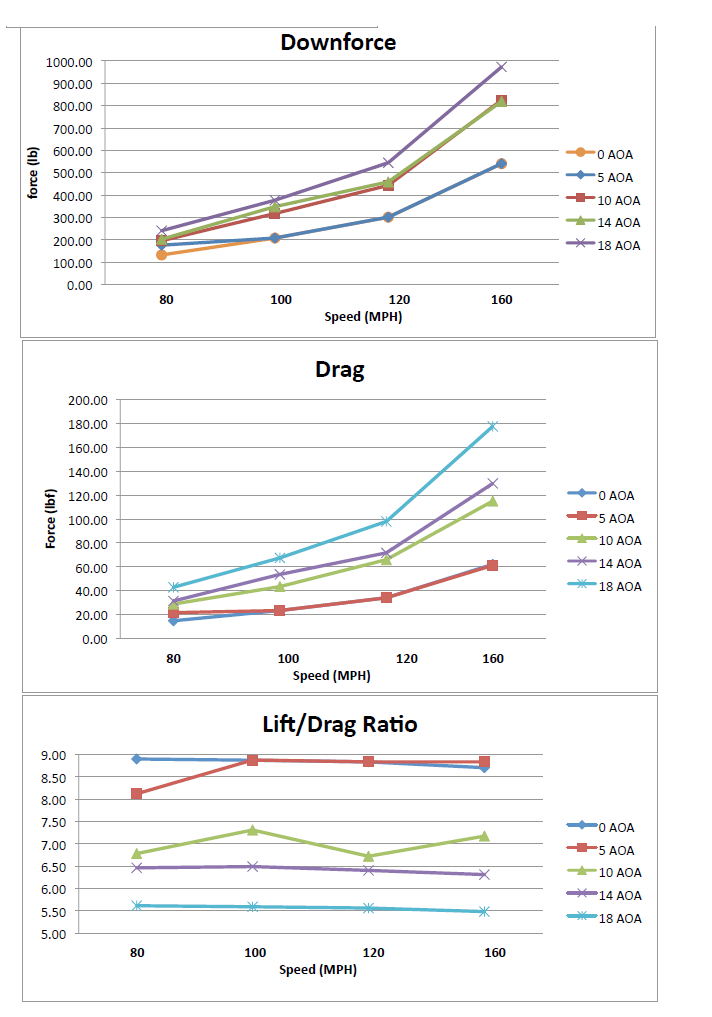

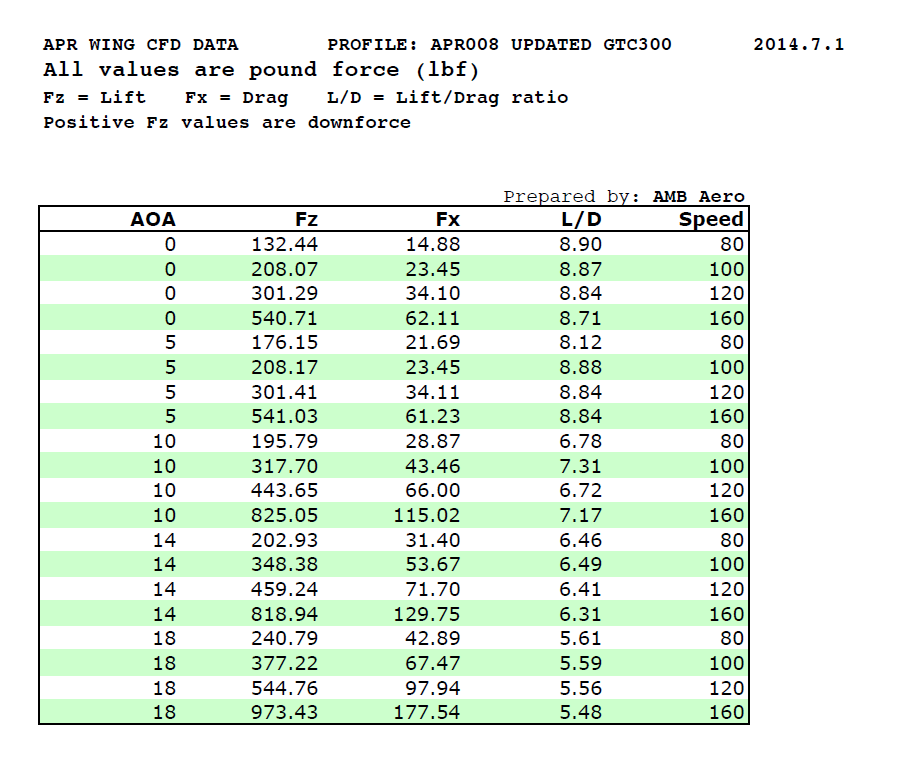

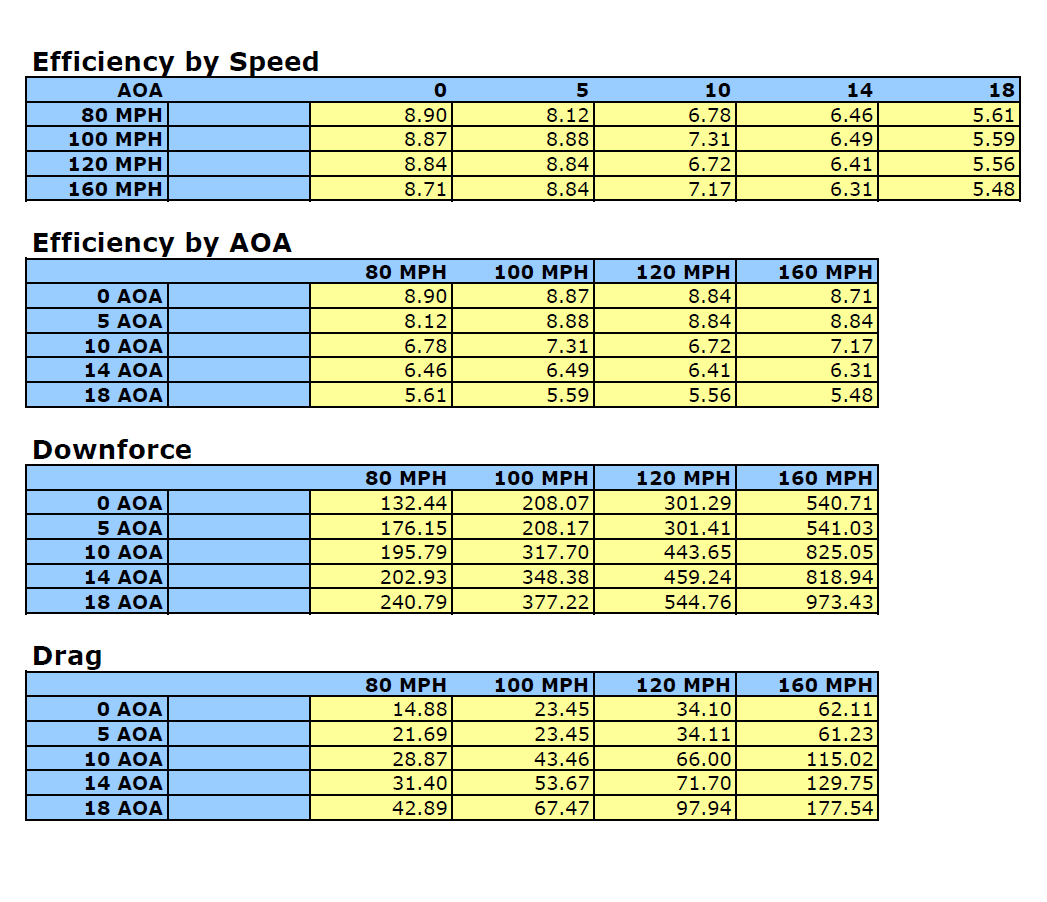

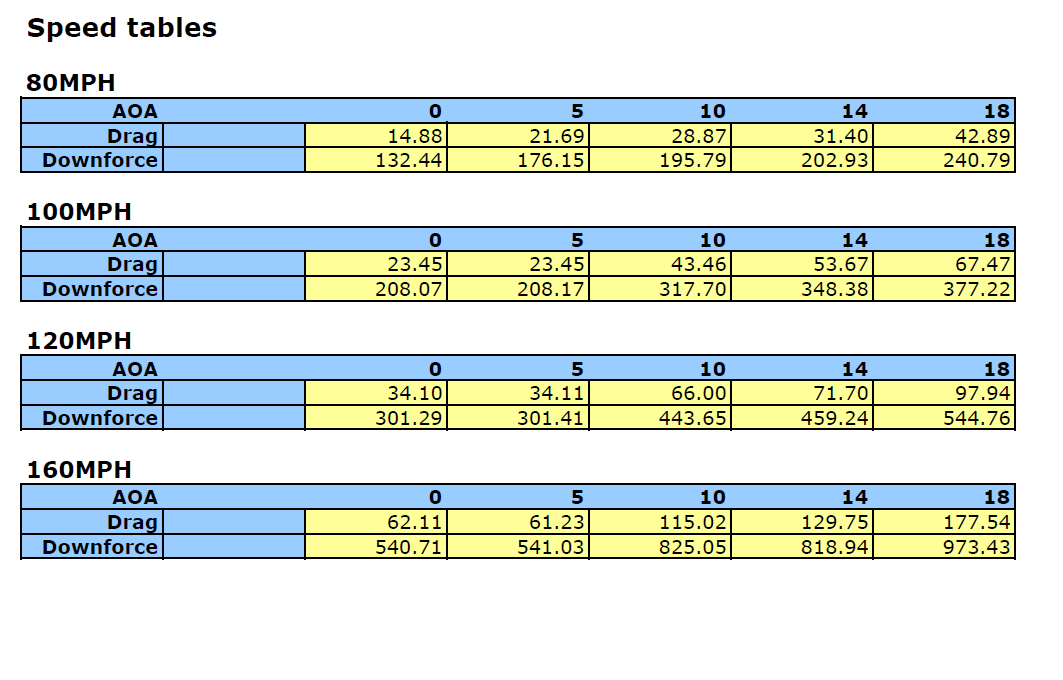

High Downforce-to-Drag Efficiency Ratio
Optimized 8.88:1 downforce-to-drag ratio improves rear stability without excessive drag penalty.

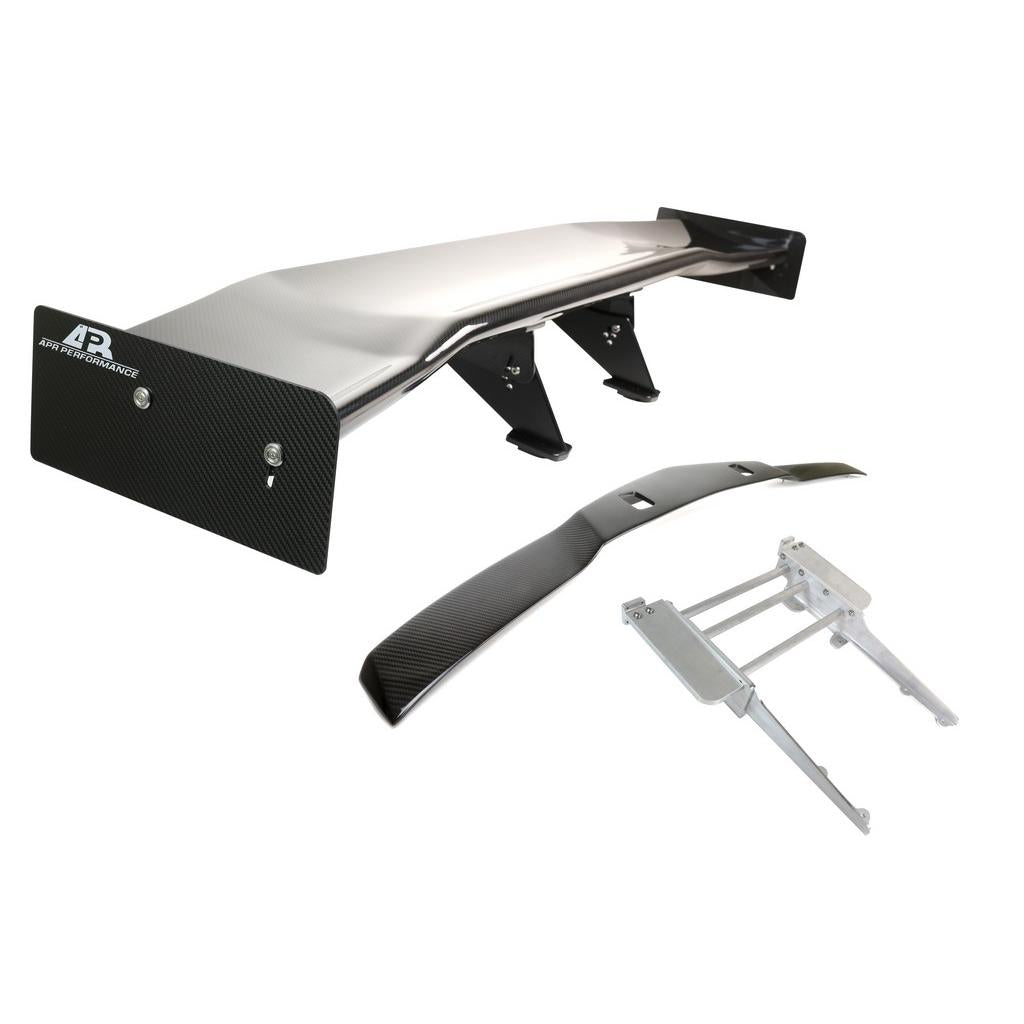

Included Components
- APR GTC-500 Carbon Fiber Adjustable Rear Wing
- Chassis Mount Reinforcement Brackets
- Carbon Fiber Rear Spoiler Delete Panel

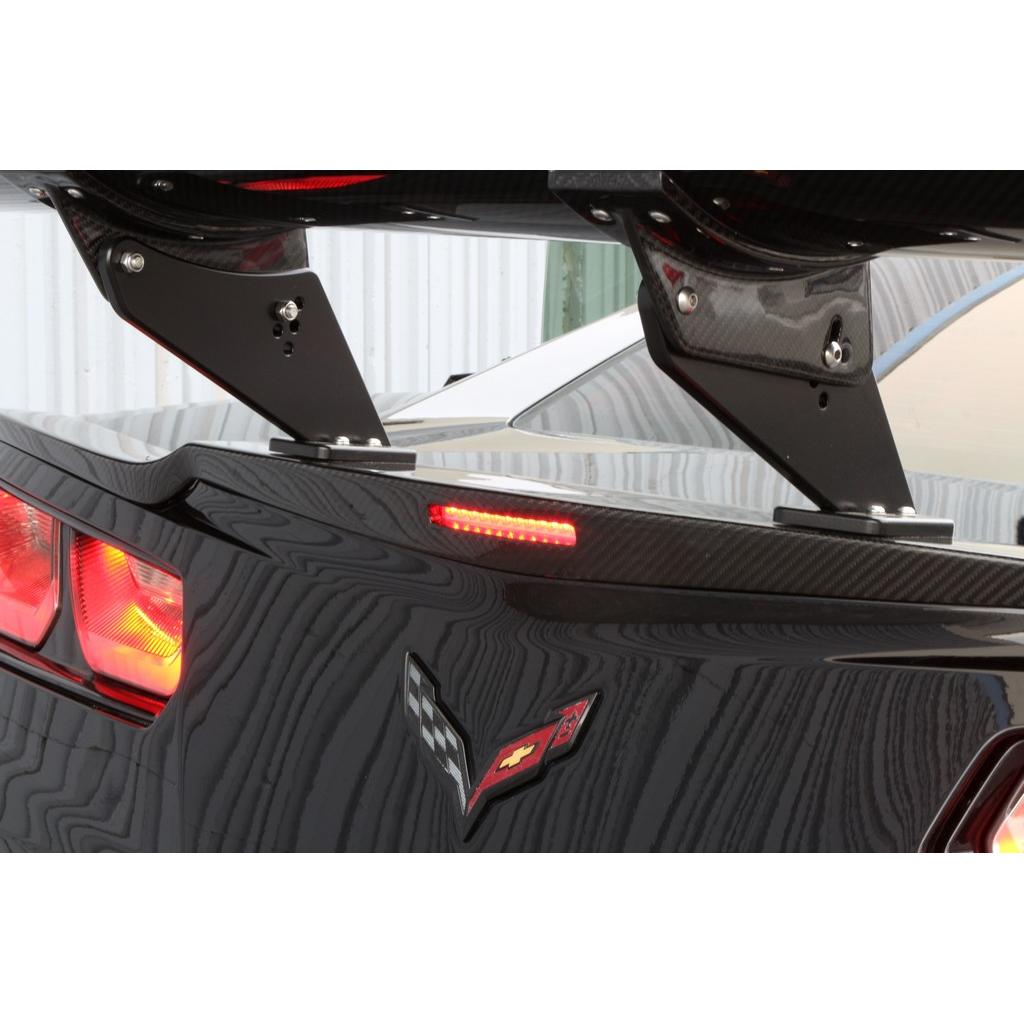

- LED Third Brake Light
- Mounting Hardware
Optional Upgrade
Carbon Fiber Gurney Flap (Sold Separately)
Adds additional rear downforce and improves airflow attachment during high-speed cornering.
- Height: ½ inch (12.7mm)
- Construction: Pre-preg carbon fiber
- Installation: 3M VHB attachment
Specifications
- Span Options: 71" or 74"
- Chord Depth: 10.2"–12" variable
- Height: Up to 13" adjustable
- Angle Adjustment Range: 0°–15°
- Construction: Autoclave-cured carbon fiber
- Uprights: 6061 billet aluminum
Vehicle Fitment
Fits:
- Chevrolet Corvette C7 Z06 Coupe (2015–2019)
- Chevrolet Corvette C7 Grand Sport Coupe (2017–2019)
Does NOT fit Stingray models
